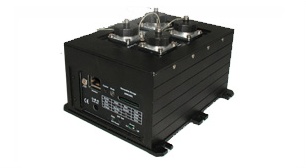

CLOG-710
Data Logger operate Stand-alone or PC-connected
| SPECIFICATIONS |  CLOG-710 PDF datasheet |
| Analog Input Channels | 16 single-ended, 8 differential |
| Resolution | 14 bit |
| Maximum Sample Rate | 14.4kHz (stand-alone), 4.8kHz (PC-connected) |
| Programmable Gain | 1,10,100,1000 or 1,2,4,8 |
| Max. normal mode voltage | 30V DC or peak AC |
| Input Impedance | 1M Ohms |
| Trigger Mode | Pre-trigger, post-trigger |
| Control(Stand-alone mode) | Single push-button, manual control record and standby |
| SRemovable Memory | SD 16MB to 2GB |
| Indicator | LED |
| Software | Free data acquisition and waveform browser software |
| Programming solution | Free ActiveX Controls |
| PC Communication | USB port or Ethernet port, see the order information |
| Input connector | 12-pin aviation socket |
| Power Consumption | 15VDC or Lithium Battery (> 4 Hours) |
| Operating Temperature | 0 to 70 ℃ |
| Dimensions | 156mm x 132mm x 80mm |
| Weight | 1.75 kg |
| ORDER INFORMATION | |
| CLOG-710 | 14 bit, 14.4kHz, 16-Channel Data Logger, operate stand-alone or PC –connected, include free Data Acquisition Software |
