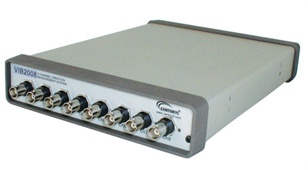

VIB2008
8-Channel Portable Vibration Tester
SPECIFICATIONS VIB2008 PDF datasheet
Dynamic Input Channel 8 channels (IEPE accelerometer directly)
Resolution 16 bit
Maximum Sample Rate 200kHz
Programmable Gain 1, 2, 4, 8
IEPE Bias Source 4mA constant-current source
Output Mode Real-time vibration acceleration, or peak acceleration
Input Coupling AC, DC (software programmable)
High-Pass Filter 0.16Hz
Low-Pass Filter 1kHz, 4-pole Butterworth filter
Sensor Online Detection Yes
Input Connector BNC
Software Free data acquisition software
PC Communication USB port
Power Consumption 9 to 36 VDC/4.5w
Operating Temperature 0 to 70 ℃
Dimensions 195mm x 230mm x 39mm
Weight 1.3kg

ORDER INFORMATION
VIB2008 8-Channel Portable Vibration Tester
