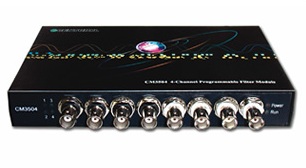

CM3504
4-Channel Dynamic Signal Conditioning Module
| SPECIFICATIONS |  CM3504 PDF datashee |
| Analog Input | 4 channels |
| Input Range | ± 10V |
| Programmable Gain | 1, 2, 4, 8 (CM3504-L); 1,10,100,1000(CM3504-H) |
| Input Coupling | AC, DC (software programmable) |
| High-Pass Filter | 0.16Hz |
| Low-Pass Filter | 8-pole Elliptic filter, programmable on per channel, 0.1% accuracy, 1.6Hz to 10kHz, |
| IEPE Bias Source | 4mA constant-current source (on/off software programmalbe per channel) |
| Constant Current Excitation | 2 to 20 mA (4mA typ) |
| Signal Connection | BNC |
| Connectors | DB37 and BNC |
| Operating Temperature | 0 to 70 ℃ |
| Dimensions | 180mm x 110mm x 26mm |
| Weight | 1 kg |
| ORDER INFORMATION | |
| CM3504-L | 4-Channel Dynamic Signal Conditioning Module, Programmable Filter, Gain and IEPE Accelerometer Bias Source, Low Gain |
| CM3504-H | 4-Channel Dynamic Signal Conditioning Module, Programmable Filter, Gain and IEPE Accelerometer Bias Source, High Gain |
